Low Pressure Molding Machine KAPPA 1000
In addition to horizontal-injection, the KAPPA 1000 low pressure molding machine offers a single-station system with external melt tank.
Product Features
at a Glance
Single-workstation system
Horizontal-injection, single-workstation system
Ejection system
For easy part removal
Touchscreen
Seven-inch touchscreen, multilanguage operator PLC
External melt tank
External high-volume melt tank
Thermal control zones
Three thermal control zones for precise melt control
Operator safety
Equipped with a light curtain, safety door and dual-palm buttons for operator safety
Full Specifications for Low Pressure Molding Machine KAPPA 1000

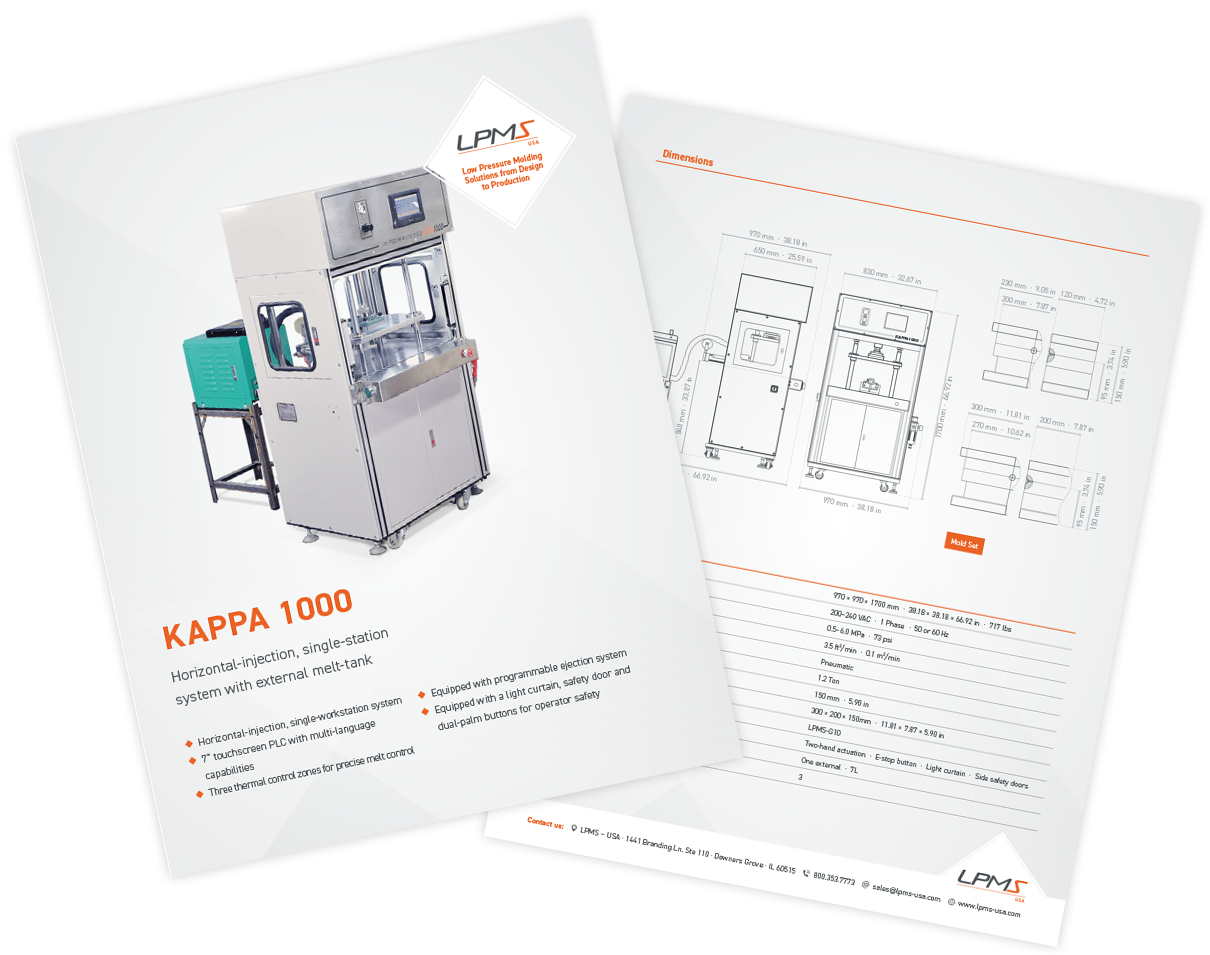

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 1000 low pressure molding machine.
KAPPA 1000
Specifications
| Machine Size | 970 × 970 × 1700 mm · 38.18 × 38.18 × 66.92 in · 717 lbs |
| Electricity | 200–240 VAC · 1 Phase · 50 or 60 Hz · 25 A |
| Air Input | 30–100 psi |
| Air Required | > 90 psi |
| Clamping Method | Pneumatic |
| Clamping Force | 1.2 Tons |
| Clamping Stroke | 125 mm |
| Max. Mold Size | 320 × 270 × 125 mm |
| Platen Size | 320 × 270 mm |
| Nozzle | LPMS-G10 |
| Safety Features | Two-hand actuation · E-stop button · Light curtain · Side safety doors |
| Melt Tank Quantity / Volume | One external · 7L |
| Temperature Control Zones | 3 |
