Henkel Printed Electronics Products
Henkel Adhesive Technologies holds leading market positions worldwide in the industrial and consumer business. As a global leader in the adhesives, sealants, and functional coatings markets, Henkel has developed a large material portfolio of LOCTITE® conductive inks and coatings suitable for printed electronics. Explore our extensive range of LOCTITE® printed electronics products.
Conductive Ink
LOCTITE® M 3014-1RS E&C
Key Features
- One component
- Processing Ease
- Screen printable for reduction in circuit profile and production
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M 3014-1RS E&C | Container | 1kg | 1263351 |
| Diluent | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| Carbitol acetate | Conductive Ink | 5-10 min, 80°C | Heat cure, Hot air drying or infrared |
SCREEN PRINTING
LOCTITE® EDAG 423SS
Key Features
- Conductive carbon ink for low voltage circuitry
- Used for printing contact areas
- Protects silver tracks from oxidation
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG 423SS | Container | 4kg | 1223944 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Sheet Resistance |
|---|---|---|---|
| PET, PEN, PI | Screen printing | 15 min, 120°C | < 42 |
SCREEN PRINTING
LOCTITE® EDAG 423SS E&C
Key Features
- Conductive carbon ink for low voltage circuitry
- Used for printing contact areas
- Protects silver tracks from oxidation
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG 423SS E&C | Container? | 1kg | 1740442 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Sheet Resistance |
|---|---|---|---|
| PET, PEN, PI | Screen printing | 15 min, 120°C | < 42 |
LOCTITE® EDAG 435A
Product information will follow
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG 435A | Container | 1kg | 1263541 |
SCREEN PRINTING
LOCTITE® EDAG 451SS E&C
Key Features
- Translucent green
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG 451SS E&C, 1kg | Container | 1kg | 1263445 | |
| LOCTITE® EDAG 451SS E&C, 4kg | Container | 4kg | 1223950 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Breakdown Voltage |
|---|---|---|---|
| PET, PC | Screen printing | UV light 0.5J/cm² | > 1500 V |
SCREEN PRINTING
LOCTITE® EDAG 452SS E&C
Key Features
- Translucent green
- Also available in blue color under the name of LOCTITE® EDAG PF 465 E&C and clear under the name of LOCTITE® EDAG ML 25208 E&C
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG 452SS E&C, 1kg | Container | 1kg | 1263489 | |
| LOCTITE® EDAG 452SS E&C, 4kg | Container | 4kg | 1223965 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Breakdown Voltage |
|---|---|---|---|
| PC, PET, PEN | Screen printing | UV light 0.5J/cm² | > 1500 V |
SCREEN PRINTING
LOCTITE® EDAG 725A (6S54) E&C
Key Features
- Excellent flexibility
- Used to create printed circuits, crossovers, and sensors
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG 725A (6S54) E&C | Can | 1kg | 1263533 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Sheet Resistance |
|---|---|---|---|
| PET, PI, PEN, Paper | Screen printing | 15 min, 120°C | < 0.015 |
SCREEN PRINTING
LOCTITE® EDAG ML 25208 E&C
Key Features
- Translucent
- Also available in blue under LOCTITE® EDAG PF 465 E&C and green under LOCTITE® EDAG 452SS E&C
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG ML 25208 E&C | Container | 1kg | 1263487 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Sheet Resistance |
|---|---|---|---|
| PC, PET, PEN | Screen printing | UV light 0.5J/cm² | > 1500 V |
SCREEN PRINTING
LOCTITE® EDAG ML 25265 E&C
Key Features
- Translucent
- Also available in green as LOCTITE® EDAG ML 25240 E&C
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG ML 25265 E&C | Container | 4kg | 1223978 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Breakdown Voltage |
|---|---|---|---|
| Flexible copper circuits, ITO sputtered polyester film, metals and glass |
Screen printing | UV light 0.5J/cm² | > 2500 V |
SCREEN PRINTING

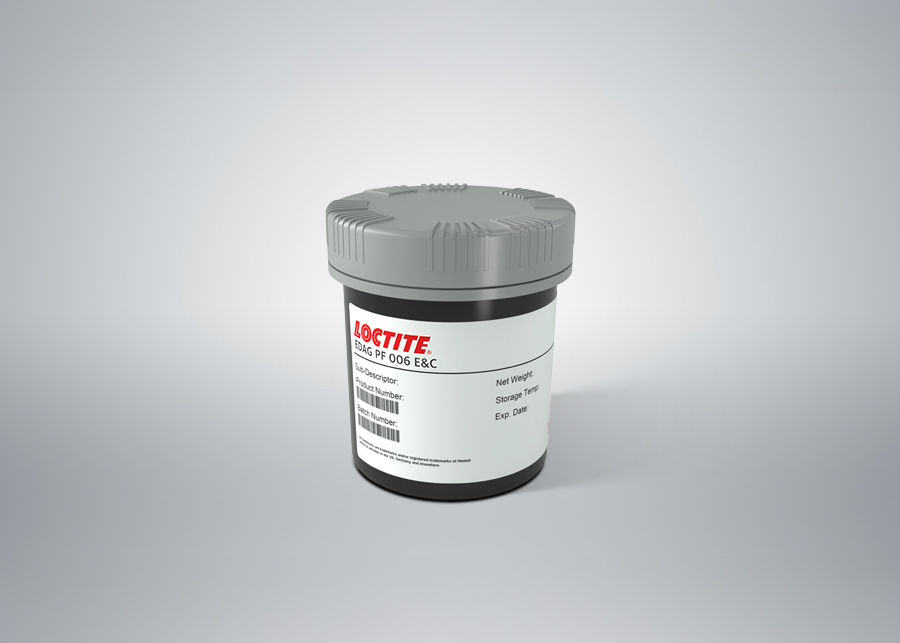

LOCTITE® EDAG PF 006 E&C
Key Features
- Silver-carbon blend
- Low silver migration
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG PF 006 E&C | Container | 1kg | 1263391 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Sheet Resistance |
|---|---|---|---|
| PET, ABS, Paper | Screen printing | 15 min, 120°C | < 0.020 |
DISPENSING
LOCTITE® EDAG PF 021 E&C
Key Features
- Translucent
- UV-curable glob top coating
- Protects surface-mounted devices
- LED curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG PF 021 E&C | Container | 1kg | 1263389 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Sheet Resistance |
|---|---|---|---|
| PET, PC, FR-4 | Dispensing | UV light 0.7J/cm² | Non-Conductive |
SCREEN PRINTING
LOCTITE® EDAG PF 455B E&C
Key Features
- Translucent green
- Also available as translucent under the name of LOCTITE® EDAG PF 455BC E&C
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG PF 455B E&C | Container | 1kg | 1263298 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Breakdown Voltage |
|---|---|---|---|
| PET, PEN, PC | Screen printing | UV light 0.5J/cm² | > 2800 V |
SCREEN PRINTING
LOCTITE® EDAG PF 455BC E&C
Key Features
- Translucent
- Also available as green under LOCTITE® EDAG PF 455B E&C
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® EDAG PF 455BC E&C | Container | 1kg | 1223830 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Breakdown Voltage |
|---|---|---|---|
| PET, PEN, PC | Screen printing | UV light 0.5J/cm² | > 2800 V |
Conductive Ink
LOCTITE® M2001RS
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2001RS | Container | 1kg | 1263366 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
Conductive Ink
LOCTITE® M2010RS
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2010RS | Container | 1kg | 1263364 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
Printed resistors
LOCTITE® M 2012RS MOD 2
Key Features
- One component
- Applicable with manual or semi-automatic screen printing
- Good screen residence time
- Can be mixed for precise resistance values
- Less than 5% resistance changes after soldering, humidity and thermal ageing exposure
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2012RS MOD 2 | Can | 0.2kg | 1239314 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4, CEM-1 and CEM-3 polyether sulphone and ceramic substrates |
Printed resistors | 5 to 10 Min. at 120 ºC | Heat cure |
Conductive Ink
LOCTITE® M2012RS
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2012RS | Container | 1kg | 1263361 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
Conductive Ink
LOCTITE® M2013-5RS E&C
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2013-5RS E&C | Container | 1kg | 1263359 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
Printed resistors
LOCTITE® M 2013RS MOD 2
Key Features
- One component
- Applicable with manual or semi-automatic screen printing
- Good screen residence time
- Can be mixed for precise resistance values
- Less than 5% resistance changes after soldering, humidity and thermal ageing exposure
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2013RS MOD 2 | Can | 0.2kg | 1239316 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4, CEM-1 and CEM-3 polyether sulphone and ceramic substrates |
Printed resistors | 5 to 10 Min. at 120 ºC | Heat cure |
Conductive Ink
LOCTITE® M2013RS
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2013RS | Container | 1kg | 1263360 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
Conductive Ink
LOCTITE® M2015 POL
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2015 POL | Container | 1kg | 1263357 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
Conductive Ink
LOCTITE® M2023 POL
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2023 POL | Container | 1kg | 1263356 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
Conductive Ink
LOCTITE® M2031 POL
Key Features
- One component
- High wear resistance
- Screen printable for reduction in circuit profile and production
- Laser trimmable (linearity of 1%)
- IR curable
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M2031 POL | Container | 1kg | 1263355 |
| Compatible Substrates | Application Method | Optimum Drying Cycle | Cure |
|---|---|---|---|
| FR-3, FR-4. CEM-1, CEM-3, Polyester Sulfone and Ceramic |
Conductive Ink | 2 min, 200ºC | Heat cure and IR cure |
LOCTITE® M4100 POL
Product information will follow
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M4100 POL | Container | 1kg | 1223881 |
LOCTITE® M4100LR
Product information will follow
| Product Name | Packaging | Size | IHD | |
|---|---|---|---|---|
| LOCTITE® M4100LR | Container | 1kg | 1263348 |
